Software Development Kit

Sometimes, you don’t need big things. The SDK makes sure you don’t need to be a DevOps.

Tags:

4 minute read

When you (a ChallMaker) want to deploy a single container specific for each source, you don’t want to understand how to deploy it to a specific provider. In fact, your technical expertise does not imply you are a Cloud expert… And it was not to expect ! Writing a 500-lines long scenario fitting the API only to deploy a container in a hardened environment is a tedious job you don’t have time for.

For this reason, we built a Software Development Kit to ease your use of chall-manager. It contains all the features of the chall-manager without passing you the issues of API compliance.

Additionnaly, we prepared some common use-cases factory to help you focus on your CTF, not the infrastructure:

Kubernetes ExposedMonopod
Kubernetes ExposedMultipod

The community is free to create and distribute new (or alternatives) pre-made recipes, and we welcome contributions to add new official ones. Please open an issue as a Request For Comments, and a Pull Request if possible to propose an implementation.

Build scenarios

The common API for chall-manager scenario is very simple, defined per inputs and outputs. They could be respectively fetched from the stack configuration and exported through stack outputs.

Inputs

Name	Required	Description
`identity`	✅	The identity of the Challenge on Demand request.

Outputs

Name	Required	Description
`connection_info`	✅	The connection information, as a string (e.g. `curl http://a4...d6.my-ctf.lan`)
`flag`	❌	The identity-specific flag the CTF platform should only validate for the given source

Kubernetes ExposedMonopod

Fit: deploy a single container on a Kubernetes cluster.

The kubernetes.ExposedMonopod helps you deploy it as a single Pod in a Deployment, expose it with 1 Service per port and if requested 1 Ingress per port.

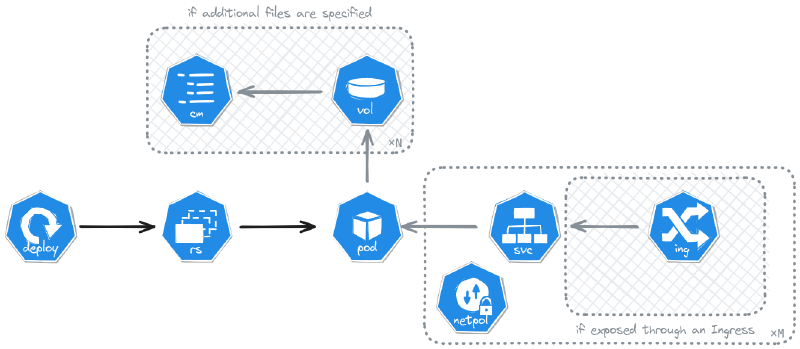

The Kubernetes ExposedMonopod architecture for deployed resources.

The following is an example from the 24h IUT 2023 usage of this SDK resource such that it deploys the Docker image pandatix/license-lvl1:latest, and expose port 8080 (implicitely using TCP) through an ingress. The result is used to create the connection information i.e. a curl example command. For more info on configuration, please refer to the code base.

main.go


package main

import (
	"github.com/ctfer-io/chall-manager/sdk"
	"github.com/ctfer-io/chall-manager/sdk/kubernetes"
	"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
)

func main() {
	sdk.Run(func(req *sdk.Request, resp *sdk.Response, opts ...pulumi.ResourceOption) error {
		emp, err := k8s.NewExposedMonopod(req.Ctx, "license-lvl1", &k8s.ExposedMonopodArgs{
			Identity: pulumi.String(req.Config.Identity),
			Hostname: pulumi.String("brefctf.ctfer.io"),
			Container: k8s.ContainerArgs{
				Image: pulumi.String("pandatix/license-lvl1:latest"),
				Ports: k8s.PortBindingArray{
					k8s.PortBindingArgs{
						Port:       pulumi.Int(8080),
						ExposeType: k8s.ExposeIngress,
					},
				},
			},
		}, opts...)
		if err != nil {
			return err
		}

		resp.ConnectionInfo = pulumi.Sprintf("curl -v https://%s", emp.URLs.MapIndex(pulumi.String("8080/TCP")))
		return nil
	})
}

Requirements

To use ingresses, make sure your Kubernetes cluster can deal with them: have an ingress controller (e.g. Traefik), and DNS resolution points to the Kubernetes cluster.

Kubernetes ExposedMultipod

Fit: deploy a network of containers on a Kubernetes cluster.

The Kubernetes ExposedMultipod helps you deploy many pods with as many deployments, services for each port of each container, ingress whenever required. It is a generalization of the Kubernetes ExposedMonopod.

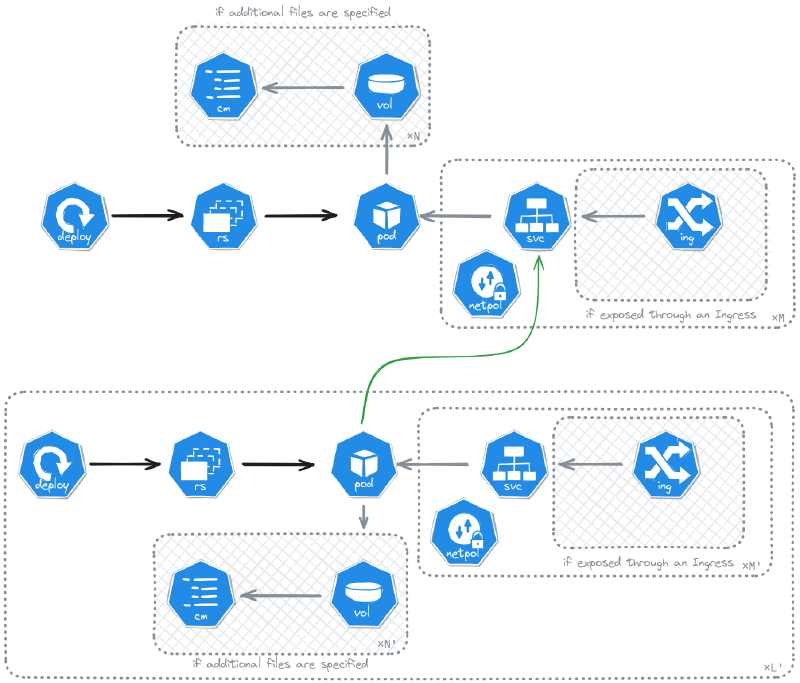

The Kubernetes ExposedMultipod architecture for deployed resources.

The following is an example from the NoBrackets 2024 usage of this SDK resource such that it deploys the web vip-only challenge from Drahoxx. It is composed of a NodeJS service and a MongoDB. The first is exposed through an ingress, while the other remains internal. The single rule enables traffic from the first to the second on port 27017 (implicitely using TCP).

main.go


package main

import (
	"github.com/ctfer-io/chall-manager/sdk"
	"github.com/ctfer-io/chall-manager/sdk/kubernetes"
	"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
)

func main() {
	sdk.Run(func(req *sdk.Request, resp *sdk.Response, opts ...pulumi.ResourceOption) error {
			emp, err := kubernetes.NewExposedMultipod(req.Ctx, "vip-only", &kubernetes.ExposedMultipodArgs{
			Identity: pulumi.String(req.Config.Identity),
			Hostname: pulumi.String("brefctf.ctfer.io"),
			Containers: kubernetes.ContainerMap{
				"node": kubernetes.ContainerArgs{
					Image: pulumi.String("pandatix/vip-only-node:latest"),
					Ports: kubernetes.PortBindingArray{
						kubernetes.PortBindingArgs{
							Port:       pulumi.Int(3000),
							ExposeType: kubernetes.ExposeIngress,
						},
					},
				},
				"mongo": kubernetes.ContainerArgs{
					Image: pulumi.String("pandatix/vip-only-mongo:latest"),
					Ports: kubernetes.PortBindingArray{
						kubernetes.PortBindingArgs{
							Port: pulumi.Int(27017),
						},
					},
				},
			},
			Rules: kubernetes.RuleArray{
				kubernetes.RuleArgs{
					From: pulumi.String("node"),
					To:   pulumi.String("mongo"),
					On:   pulumi.Int(27017),
				},
			},
		}, opts...)
		if err != nil {
			return err
		}

		resp.ConnectionInfo = pulumi.Sprintf("curl -v https://%s", emp.URLs.
			MapIndex(pulumi.String("node")).
			MapIndex(pulumi.String("3000/TCP")),
		)
		return nil
	})
}

Requirements

To use ingresses, make sure your Kubernetes cluster can deal with them: have an ingress controller (e.g. Traefik), and DNS resolution points to the Kubernetes cluster.
